Quick Detail:
· Metal housing
· DC3~24V Voltage options
· Max torque 15mNm
· 3000~20000rpm high speed
· Shaft Customized
· Long lifetime,low noise
· CE, ROHS compliant
· 1 Year Warranty
Description:
DCL-1625 is an coreless brush dc motor. Which diameter is 16mm,length 25mm. The small size could provide much power that 20000rpm max speed and 15mNm torque. DCL-1625 could replace the famous 1625 motor completely with much low cost. The DCL-1625 coreless dc motor mainly use for tattoo machine,vending machine,drone,smart lock and so on.
Specification:

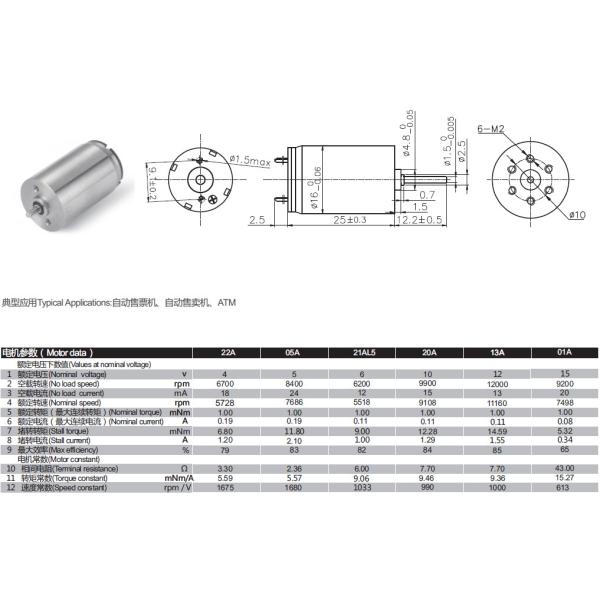

| Item | DCL-1625 coreless dc motor |
| Size | Diameter 16mm*Length 25mm |
| Install Size | Diameter 10mm,6*M2 |
| Efficiency | 90% Max |
| Working Voltage | 3V~24V |
| Speed | 3000~20000RPM |
| Torque | 18mNm Max |
| Current | 2.5A Max |
| Wattage | 6Watt Max |
| Bearing | Oil bearing |
| Shaft | 1.5mm Round Diameter, Materials Stainless steel |
| Encoder | Yes |
| Lifetime | 500hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Motor's voltage,speed,wattage, torque and shaft length can be customized
Typical application
Tattoo machine,Drone,CCTV Camera,ATM,Copiers and Scanners,Smart lock.
